Real-time Electricity Consumption Data Pipeline

An end-to-end real-time data streaming pipeline for electricity consumption in Gauteng using Python, Kafka, Docker, and Google Cloud services.

Technologies Used

Python
Kafka
Docker
Google Cloud
PostgreSQL

Key Features

  • • Real-time Data Streaming
  • • Data Validation
  • • Cloud Integration
  • • Scalable Architecture

Cloud Services

  • • Google Cloud SQL
  • • Compute Engine
  • • Cloud Storage
  • • Cloud Studio

Project Overview

This project demonstrates an end-to-end real-time data streaming pipeline for electricity consumption in Gauteng. It simulates smart meter data generation, performs real-time validation, and persists clean data from SQLite to a managed SQL database, ready for analytics. The pipeline is designed to be scalable, fault-tolerant, and production-ready.

Key Components

  • • Producer: Simulates smart meter data generation (datagen-producer.py)
  • • Kafka Broker: Manages real-time message streaming
  • • Processor: Validates and filters incoming data (streamer.py)
  • • Transporter: Writes valid data to database (google_cloud_writer.py)
  • • Database: Stores processed data in Google Cloud SQL
  • • Analytics: Query and visualize using Cloud Studio

Implementation Details

1. System Architecture

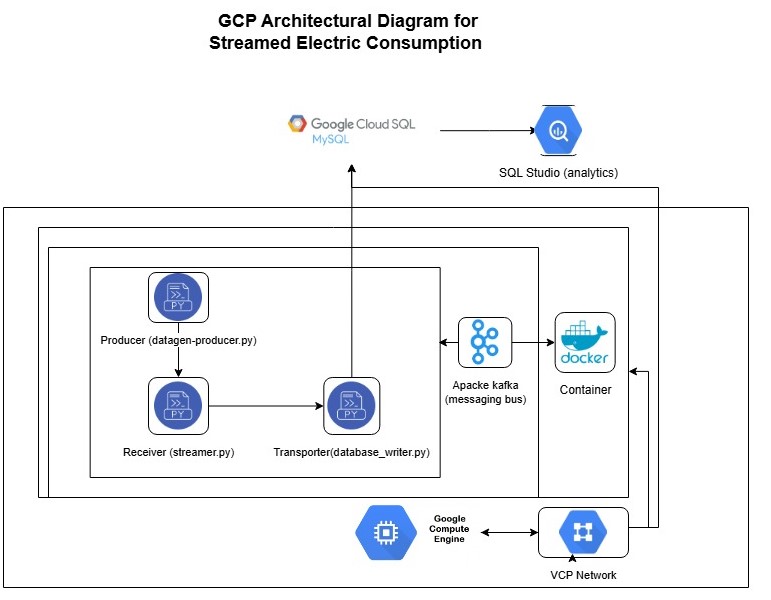

System Architecture Diagram

The architecture diagram above illustrates the end-to-end flow of our real-time electricity consumption data pipeline, from data ingestion to visualization.

2. Pipeline Flow

  • • Data Generator creates synthetic consumption data (city, sector, voltage, power usage)
  • • Kafka Broker manages topics for raw and processed data
  • • Streamer filters valid data (voltage 200–250V, power ≤ 5000 kWh)
  • • Writer persists clean data to Google Cloud SQL
  • • Analytics layer enables querying and visualization

3. Development Journey

  • • Local Development: Built and tested Python scripts with SQLite
  • • Docker Integration: Containerized all components for consistency
  • • Cloud Migration: Deployed to Google Cloud with ARM64 VM
  • • System Configuration: Set up systemd for service persistence

4. Data Schema

Table: gp_electric_cons
Field           Type
id             INT
timestamp      TIMESTAMP
city           TEXT
sector         TEXT
power_cons_in_kwh FLOAT
voltage        INT

Challenges & Solutions

  • • Docker Compatibility: Customized Dockerfiles for ARM64 architecture
  • • Cloud VM Setup: Implemented systemd for persistent services
  • • PostgreSQL Access: Configured SSL and IAM bindings with retry logic
  • • Network Configuration: Set up VPC for secure communication

Future Enhancements

  • • Integrate monitoring with Prometheus + Grafana
  • • Support batch inserts or BigQuery sink
  • • Expand sectors and cities for richer simulation
  • • Add authentication and access control for Cloud SQL
